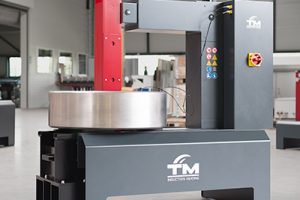

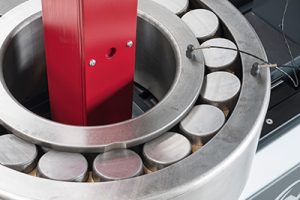

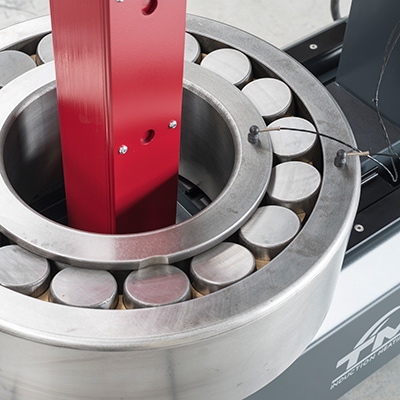

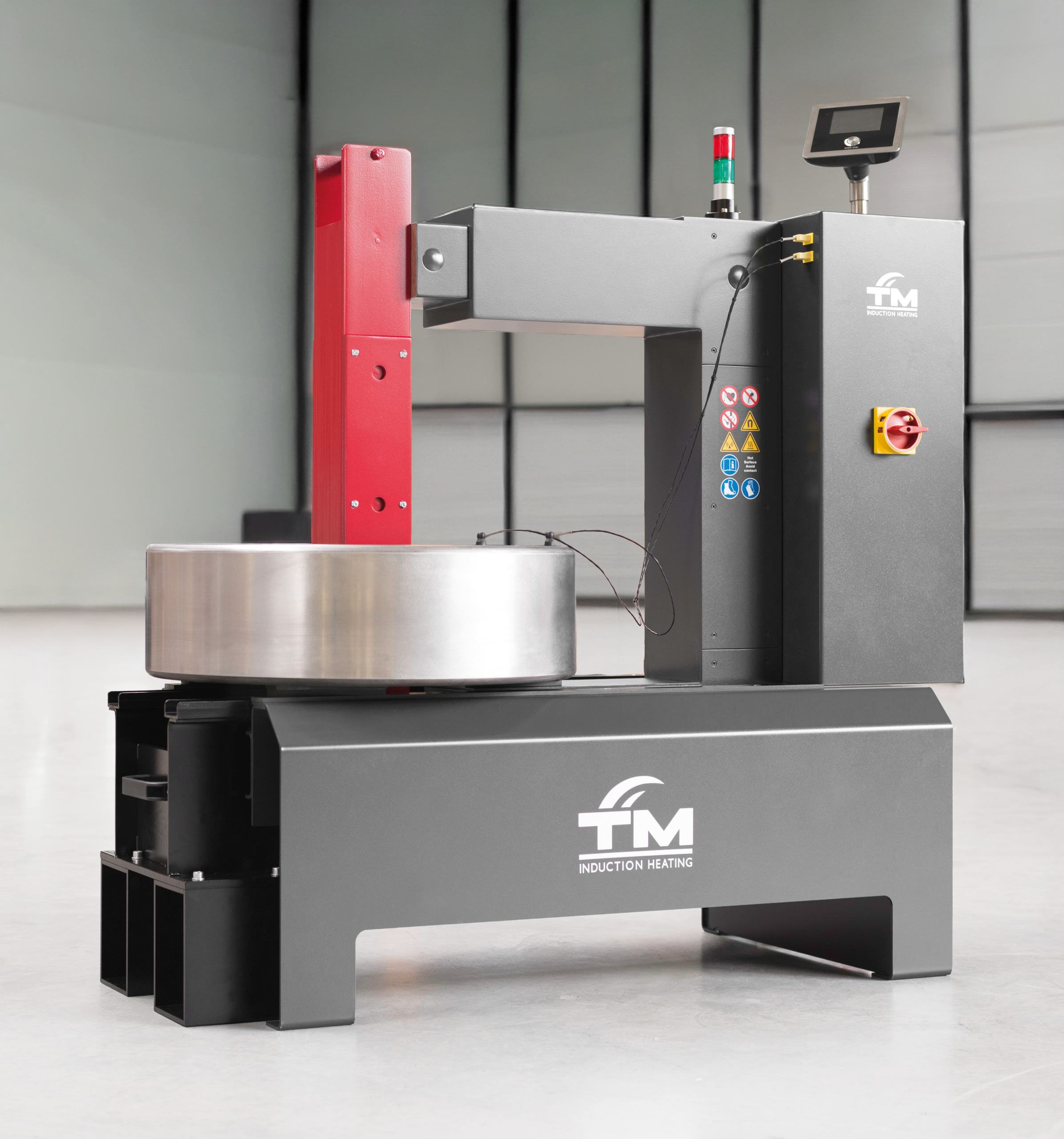

The following yokes are included with SURETHERM PRO 3X: 100 x 100. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.
SPECIFICATIONS
| Voltage | 400 - 480 - 575 Vac |
| Frequency | 50 / 60 Hz |
| Max. current | 63 A |
| Weight | 280 kg / 617 lbs |
| Operating Area (WxH) | 435 x 495 mm 17.13 x 19.49" |
| Footprint (LxB) | 1080 x 500 mm 42.52 x 19.69" |
| Workpiece | |
| Min. bore diameter | ø 40 mm / ø 1.57" |
| Max. outer diameter | ø 1500 mm / ø 59.06" |
| Max. width | 485 mm / 19.09" |
| Max. weight | 800 kg / 1764 lbs |
