SURETHERM 20X
Log in or register to see pricing

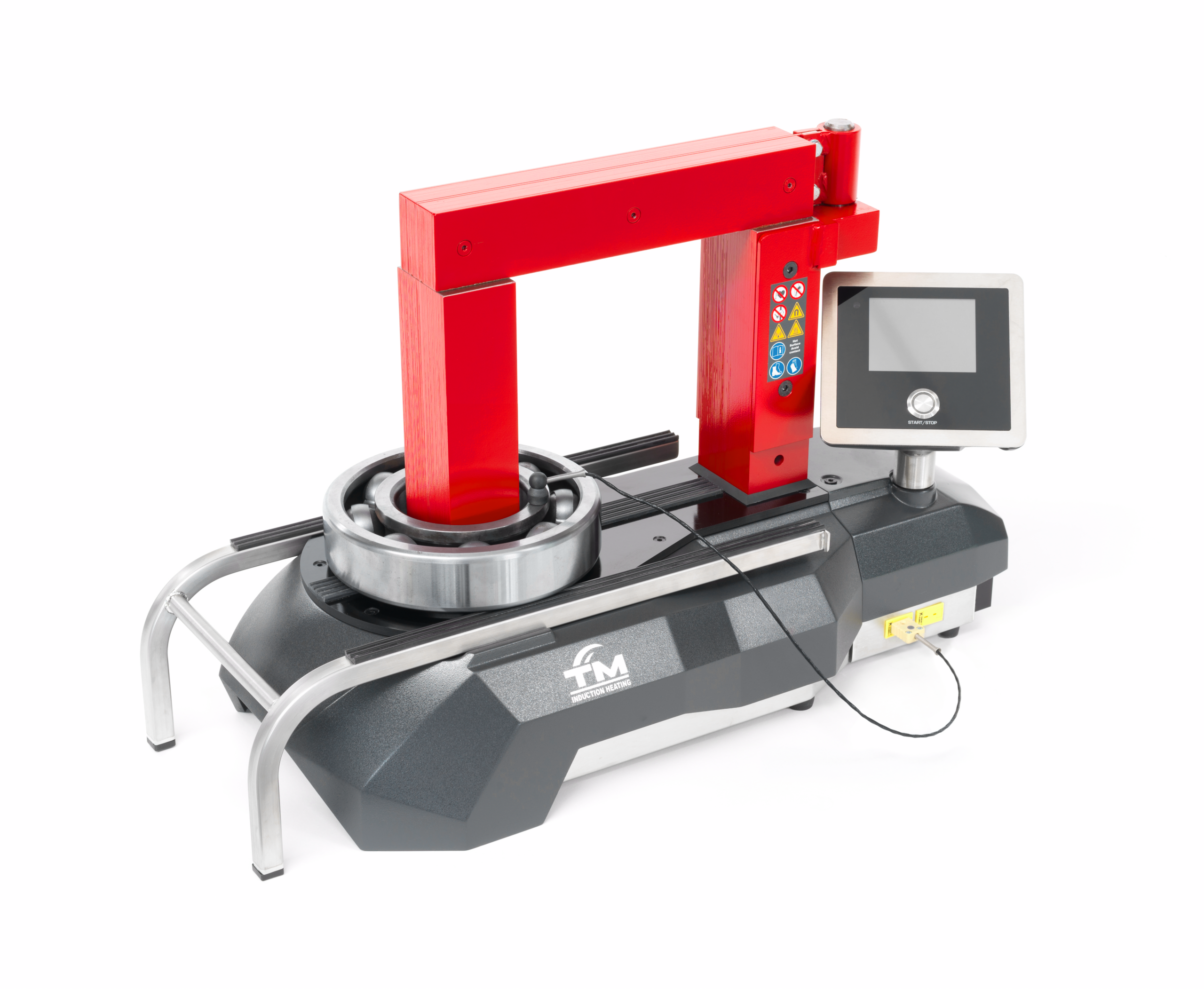

The SURETHERM 20X is the workshop workhorse in TM Induction Heating’s professional SURETHERM series, built for controlled heating of bearings, couplings, and other ring-shaped components. It offers a larger operation area and higher capacity, providing reliable, tension-free heating for parts up to 100 kg in daily workshop use.
Key functions include dual-sensor operation and ramp mode, enabling accurate control of heating processes to protect metallurgical structure. The industrial touchscreen interface supports fast setup, real-time monitoring, and heating graph display. All cycle data can be exported via USB, with firmware updates supported throughout the product’s life cycle.

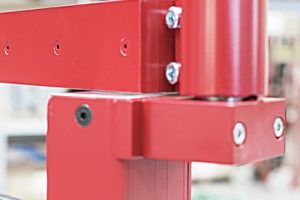

Designed for production and maintenance environments, the SURETHERM 20X focuses on ergonomics and repeatability. Pivoting yokes reduce handling effort, and the stable layout supports consistent results when you need controlled heating across a wide range of medium-sized components.
The following yokes are included with SURETHERM 20X:
50 x 48. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 500 mm are included as well.
Specifications
| Weight | 55,25 kg |
|---|---|
| Dimensions | 60 × 80 × 70 cm |
DATASHEET SURETHERM 20X
ELECTRICITY
Power rating
3.7 kVA
Voltage
110 – 230 V
Current max.
16.0 A
Frequency
50 – 60 Hz
WORKPIECE MAX. WEIGHT
Bearings and other parts
100.0 kg
WORKPIECE
Min. bore Vertical
ø15.0 mm
Min. bore Horizontal
80.0 mm
Max. outer diameter Vertical
416.0 mm
Max. outer diameter Horizontal
500.0 mm
Max. workpiece width
175.0 mm
Max. OD with extension blocks
656.0 mm
Max. temperature
240.0 °C
WEIGHT
Without yokes
40 kg
DIMENSIONS
L × W × H
540 × 275 × 315 mm
CONTROLS
Temperature (1 sensor)
0-240°C (custom: 0-400°C)
Time
0-99 min
Temperature (2 sensor)
0-240°C ΔT 20-50°C
Time / Temperature Ramp
0-99 min / 5-240°C
Set power
5-100%
TOUCHSCREEN
Heating Temperature (1 sensor)
Actual Temperature and Power, Set Temperature and Power, Timer
Heating time
Actual Temperature and Power, Set Temperature, Timer
Heating Temperature (2 sensor)
Set- and actual temperature, time and power. Actual temperature difference between inside and outside diameter
Heating Time / temp ramp
Set- and actual temperature, time and power
Languages
English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish
Error report
Shown in display
OTHERS
Heating graph
Shown in display
External interface
USB 2.0 Port for download graph and heating cycles and up load new software
Sound signal
Buzzer
Temperature hold
Yes
Demagnetizing
< 2A/cm
Magnetic probe
2 Sensors (standard)
Thermal safety guard coil
Yes
WARRANTY
Warranty period
Max. 36 Months (24+12)
