SURETHERM 10X
Log in or register to see pricing

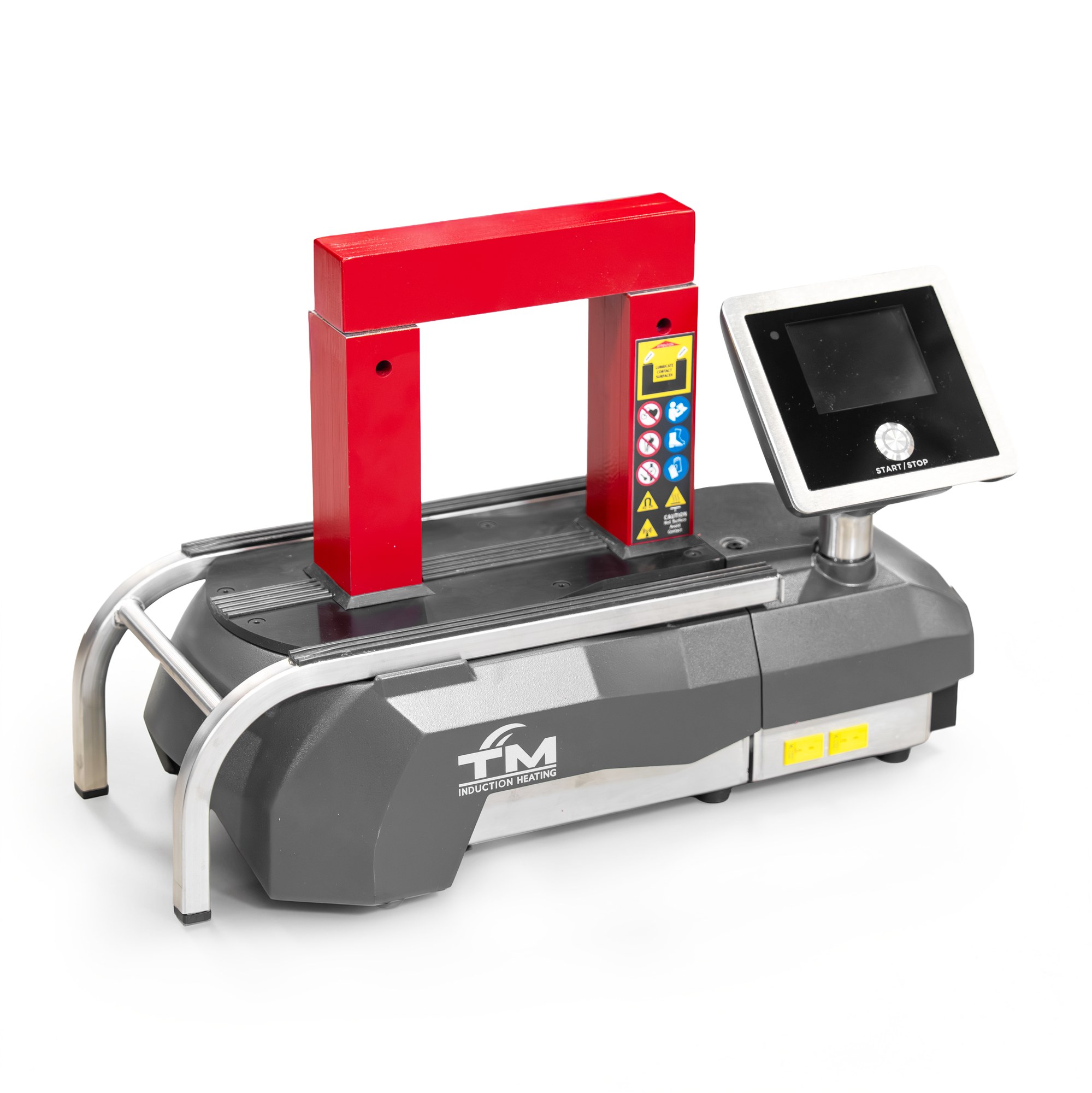

The SURETHERM 10X is the portable all-round model in TM Induction Heating’s professional SURETHERM series, built for controlled heating of bearings, gearwheels, and other ring-shaped components. It combines a compact footprint with higher capacity, delivering reliable, tension-free heating for parts up to 50 kg and larger diameters than the entry-level model.
Key functions include dual-sensor heating for tension-free operation and ramp mode for precise thermal control. The industrial touchscreen makes setup fast and clear, with real-time monitoring and cycle graph display. Heating cycle data can be exported via USB, and firmware updates are supported across the product’s life cycle.

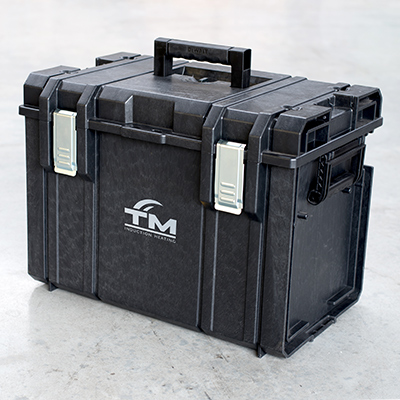

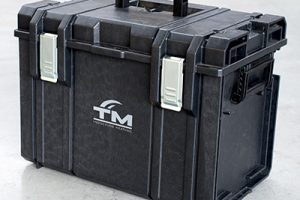

Designed for service and maintenance work, the SURETHERM 10X is easy to move and quick to deploy. Pivoting yokes support safer loading and positioning, and optional transport accessories help you use it efficiently across different work areas without compromising repeatability.
The following yokes are included with SURETHERM 10X:
10 x 10, 14 x 14, 25 x 24, 40 x 38. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 500 mm are included as well.
Specifications
| Weight | 32 kg |
|---|---|
| Dimensions | 65 × 45 × 53 cm |
| Input (Supplied Power) | 115V-13A-50/60Hz, 200V-13A-50/60Hz, 230V-13A-50/60Hz |
DATASHEET SURETHERM 10X
ELECTRICITY
Power rating
3.0 kVA
Voltage
110 – 230 V
Current max.
13.0 A
Frequency
50 – 60 Hz
WORKPIECE MAX. WEIGHT
Bearings and other parts
50.0 kg
WORKPIECE
Min. bore Vertical
ø10.0 mm
Min. bore Horizontal
66.0 mm
Max. outer diameter Vertical
330.0 mm
Max. outer diameter Horizontal
400.0 mm
Max. workpiece width
120.0 mm
Max. OD with extension blocks
480.0 mm
Max. temperature
240.0 °C
WEIGHT
Without yokes
21 kg
DIMENSIONS
L × W × H
450 × 210 × 275 mm
CONTROLS
Temperature (1 sensor)
0-240°C (custom: 0-400°C)
Time
0-99 min
Temperature (2 sensor)
0-240°C ΔT 20-50°C
Time / Temperature Ramp
0-99 min / 5-240°C
Set power
5-100%
TOUCHSCREEN
Heating Temperature (1 sensor)
Actual Temperature and Power, Set Temperature and Power, Timer
Heating time
Actual Temperature and Power, Set Temperature, Timer
Heating Temperature (2 sensor)
Set- and actual temperature, time and power. Actual temperature difference between inside and outside diameter
Heating Time / temp ramp
Set- and actual temperature, time and power
Languages
English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish
Error report
Shown in display
OTHERS
Heating graph
Shown in display
External interface
USB 2.0 Port for download graph and heating cycles and up load new software
Sound signal
Buzzer
Temperature hold
Yes
Demagnetizing
< 2A/cm
Magnetic probe
2 Sensors (standard)
Thermal safety guard coil
Yes
WARRANTY
Warranty period
Max. 36 Months (24+12)
