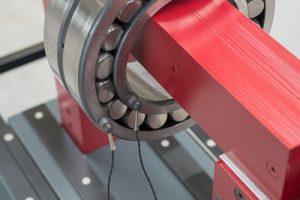

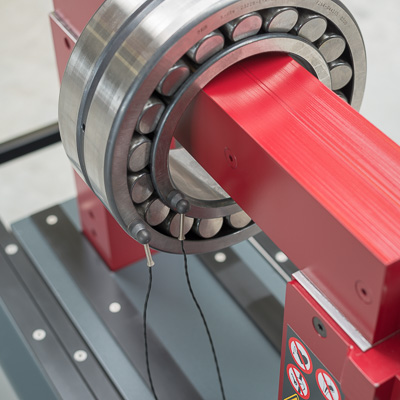

The following yokes are included with SURETHERM PRO 1X-P: 80 x 80. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.
The SURETHERM PRO 1X-P can also be supplied on a trolley (optional), so the device can be used on different locations in the workplace.
SPECIFICATIONS
| Voltage | 400 - 480 - 575 Vac |
| Frequency | 50 / 60 Hz |
| Max. current | 32 A |
| Weight | 157 kg / 346 lbs |
| Operating Area (WxH) | 330 x 300 mm 12.99 x 11.81" |
| Footprint (LxB) | 850 x 410 mm 33.46 x 16.14" |
| Workpiece | |
| Min. bore diameter | ø 30 mm / ø 1.18" |
| Max. outer diameter | ø 1000 mm / ø 39.37" |
| Max. width | 320 mm / 12.60" |
| Max. weight | 400 kg / 880 lbs |
