SURETHERM PRO 6X
Log in or register to see pricing

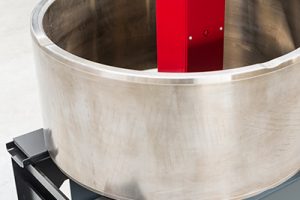

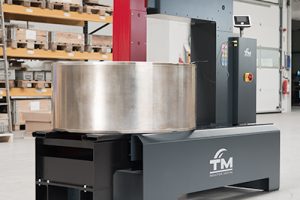

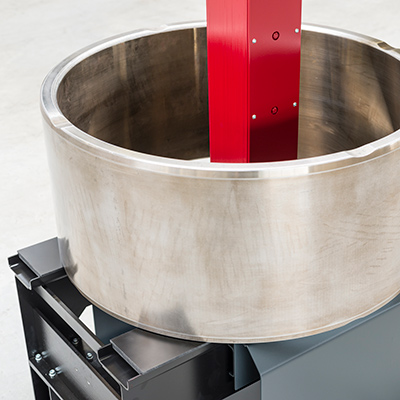

The SURETHERM PRO 6X is the flagship model in TM Induction Heating’s SURETHERM range, built for controlled heating of extremely large bearings, gears, and ring-shaped components. It is designed for the highest capacity applications, delivering reliable, tension-free heating for parts up to 1600 kg in heavy industrial environments.
Key functions include dual-sensor operation and ramp mode, supporting precise thermal control and repeatable cycles on large, high-mass workpieces. The industrial touchscreen provides easy setup, real-time monitoring, and comprehensive cycle graph display. Data export via USB supports documentation and traceability, with firmware updates supported across the product’s life cycle.
Designed for the most demanding production and maintenance use cases, the SURETHERM PRO 6X focuses on safe handling and controlled performance at scale. Its large working area supports oversized components, and optional accessories can be used to improve handling of heavy parts when reliability, repeatability, and operator safety are priorities.
The following yokes are included with SURETHERM PRO 6X: 150 x 150. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1500 mm are included as well.
Specifications
| Weight | 1062 kg |
|---|---|
| Dimensions | 122 × 162 × 177 cm |
| Input (Supplied Power) | 380V-100A-50Hz, 380V-100A-60Hz, 400V-100A-50Hz, 440V-90A-50Hz, 440V-90A-60Hz, 460V-90A-50Hz, 460V-90A-60Hz, 480V-85A-50Hz, 480V-85A-60Hz, 500V-80A-50Hz, 500V-80A-60Hz, 575V-70A-60Hz |
DATASHEET SURETHERM PRO 6X
ELECTRICITY
Power rating
40.0 kVA
Voltage
400 – 575 V
Current max.
100.0 A
Frequency
50 – 60 Hz
WORKPIECE MAX. WEIGHT
Bearings and other parts
1600.0 kg
WORKPIECE
Min. bore Vertical
ø400.0 mm
Min. bore Horizontal
85.0 mm
Max. outer diameter Vertical
1640.0 mm
Max. outer diameter Horizontal
2000.0 mm
Max. workpiece width
675.0 mm
Max. temperature
240.0 °C
WEIGHT
Without yokes
650 kg
DIMENSIONS
L × W × H
1500 × 800 × 1530 mm
CONTROLS
Temperature (1 sensor)
0-240°C (custom: 0-400°C)
Time
0-99 min
Temperature (2 sensor)
0-240°C ΔT 20-50°C
Time / Temperature Ramp
0-99 min / 5-240°C
Set power
5-100%
TOUCHSCREEN
Heating Temperature (1 sensor)
Actual Temperature and Power, Set Temperature and Power, Timer
Heating time
Actual Temperature and Power, Set Temperature, Timer
Heating Temperature (2 sensor)
Set- and actual temperature, time and power. Actual temperature difference between inside and outside diameter
Heating Time / temp ramp
Set- and actual temperature, time and power
Languages
English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish
Error report
Shown in display
OTHERS
Heating graph
Shown in display
External interface
USB 2.0 Port for download graph and heating cycles and up load new software
Sound signal
Buzzer
Temperature hold
Yes
Demagnetizing
< 2A/cm
Magnetic probe
2 Sensors (standard)
Thermal safety guard coil
Yes
WARRANTY
Warranty period
Max. 36 Months (24+12)
