SURETHERM 5X
Log in or register to see pricing

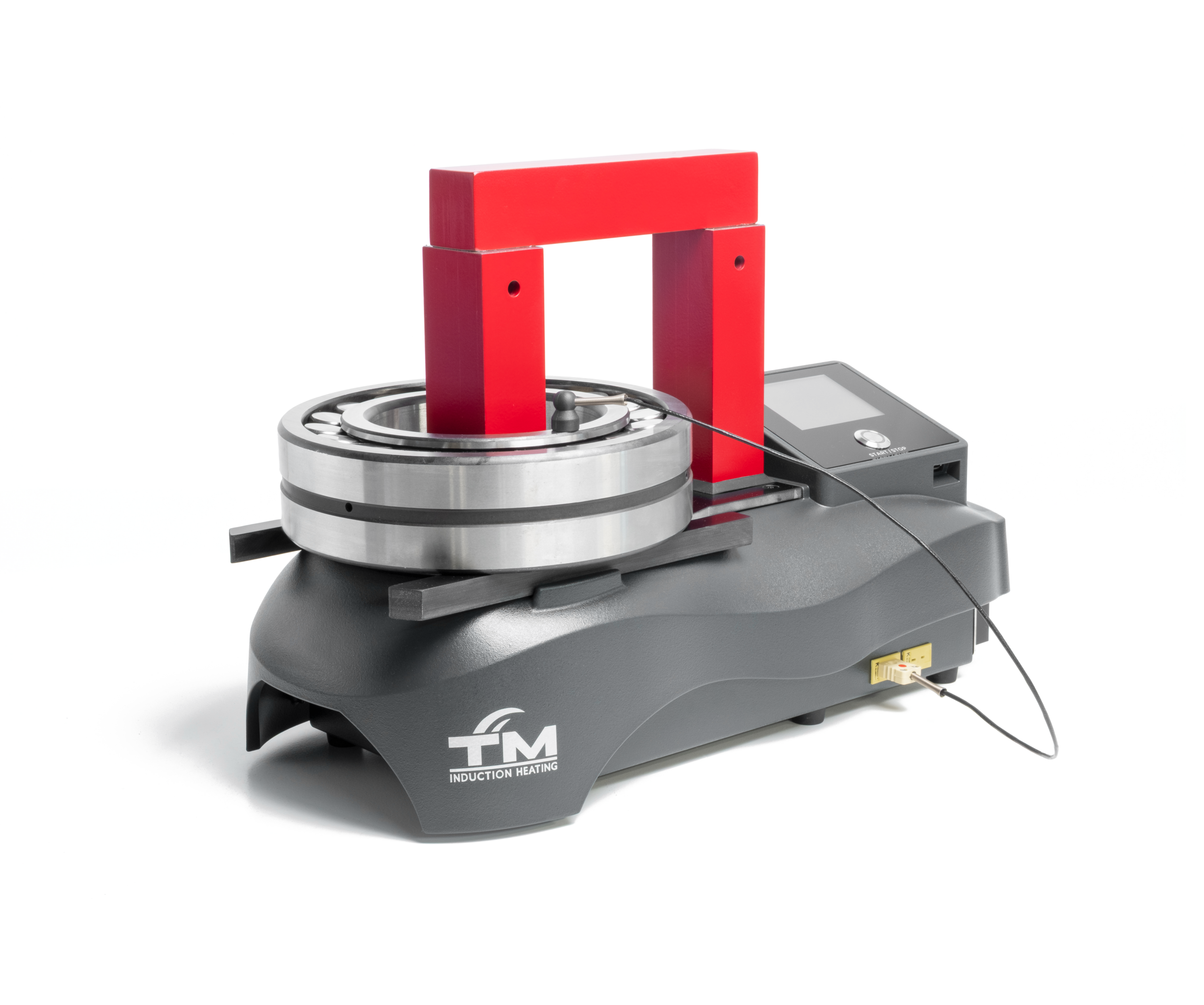

The SURETHERM 5X is the entry-level induction bearing heater in
TM Induction Heating’s professional SURETHERM series, built to deliver high-quality, controlled heating for bearings, gearwheels, and other ring-shaped components. Though compact, the 5X meets the same engineering standards as the rest of the SURETHERM range, ensuring reliable, tension-free heating for parts up to 25 kg.
Key functions include optional dual-sensor operation and ramp mode, allowing precise thermal control to protect metallurgical structure. The unit features an industrial touchscreen interface for easy setup, real-time monitoring, and heating graph display. All data can be exported via USB, and firmware updates are supported throughout the product’s life cycle.
Designed for production and maintenance environments, the SURETHERM 5X offers consistent performance with minimal operator effort. It combines the predictability and durability expected from TM Induction Heating systems, making it a practical and efficient choice where high performance and repeatability are required in
a compact footprint.
The following yokes are included with SURETHERM 5X:
14 x 14, 40 x 38. Additional yoke sizes are listed in our Datasheet. One magnetic temperature sensor is included as standard; a second sensor is available as an option.
Specifications
| Weight | 16 kg |
|---|---|
| Dimensions | 65 × 45 × 53 cm |
| Input (Supplied Power) | 115V-10A-50/60Hz, 200V-13A-50/60Hz, 230V-10A-50/60Hz |
DATASHEET SURETHERM 5X
ELECTRICITY
Power rating
2.3 kVA
Voltage
110 – 230 V
Current max.
10.0 A
Frequency
50 – 60 Hz
WORKPIECE MAX. WEIGHT
Bearings and other parts
25.0 kg
WORKPIECE
Min. bore Vertical
ø15.0 mm
Min. bore Horizontal
66.0 mm
Max. outer diameter Vertical
330.0 mm
Max. outer diameter Horizontal
300.0 mm
Max. workpiece width
120.0 mm
Max. OD with extension blocks
480.0 mm
Max. temperature
240.0 °C
WEIGHT
Without yokes
16 kg
DIMENSIONS
L × W × H
405 × 205 × 275 mm
CONTROLS
Temperature
0-240°C (custom: 0-400°C)
Time
0-99 min
2 temperature sensors
0-240°C ΔT 20-50°C
Time / Temperature Ramp
0-99 min / 5-240°C
Set power
5-100%
TOUCHSCREEN
Heating Temperature
Set- and actual Temperature and/ or power
Heating time
Set- and actual time and / or power
Heating Temperature (2 temperature sensors)
Set- and actual temperature, time and power. Actual temperature difference between inside and outside diameter
Heating Time / temp ramp
Set- and actual temperature, time and power
Languages
English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish
Error report
Shown in display
OTHERS
Heating graph
Shown in display
External interface
USB 2.0 Port for download graph and heating cycles and up load new software
Sound signal
Buzzer
Temperature hold
Yes
Demagnetizing
< 2A/cm

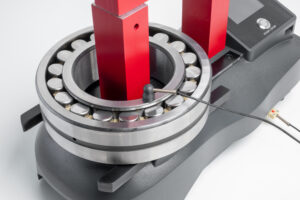

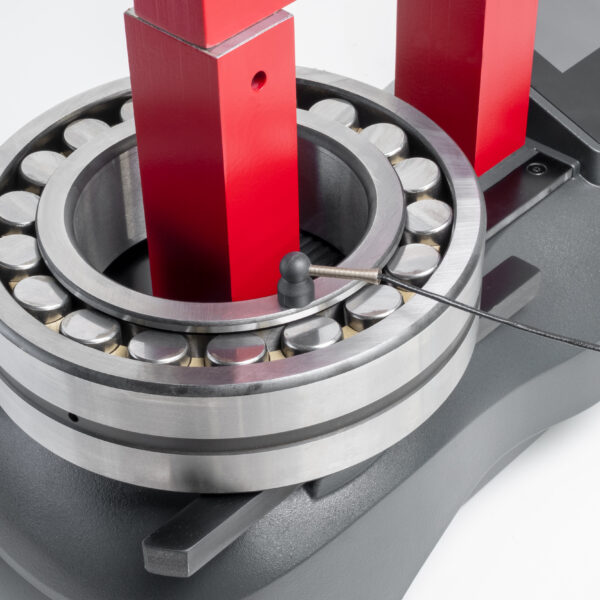

Magnetic probe
One piece (standard package)
Thermal safety guard coil
Yes
WARRANTY
Warranty period
Max. 36 Months (24+12)
