Easytherm 30 is the largest Easytherm induction heater. Suitable for heating bearings with max. mass of 300 kg and max. OD ø 660mm. Our standard version is a workbench model. The ET30 is designed for very intensive use in industrial production or service/repair environments. In addition to Temperature Mode, heating in Time Mode is available on our larger Easytherm induction heaters (ET3.5, ET15, ET30).
The following yokes are included with Easytherm 30:
80 x 80. Additional yoke sizes are listed in our Datasheet. A magnetic temperature sensor with a length of 1000 mm is included as well.
The ET30 can also be supplied on a trolley (optional), so the device can be used on different locations in the workplace. The trolley is designed to store the different yokes.
|Voltage||400 / 460 V|
|Frequency||50 / 60 Hz|
|Max. current||32 A|
|Weight excl. yoke(s)||119 kg|
|Footprint||807 x 307 mm|
|Max. Temperature||240 °C / 464 °F|
- Yoke: 80 x 80

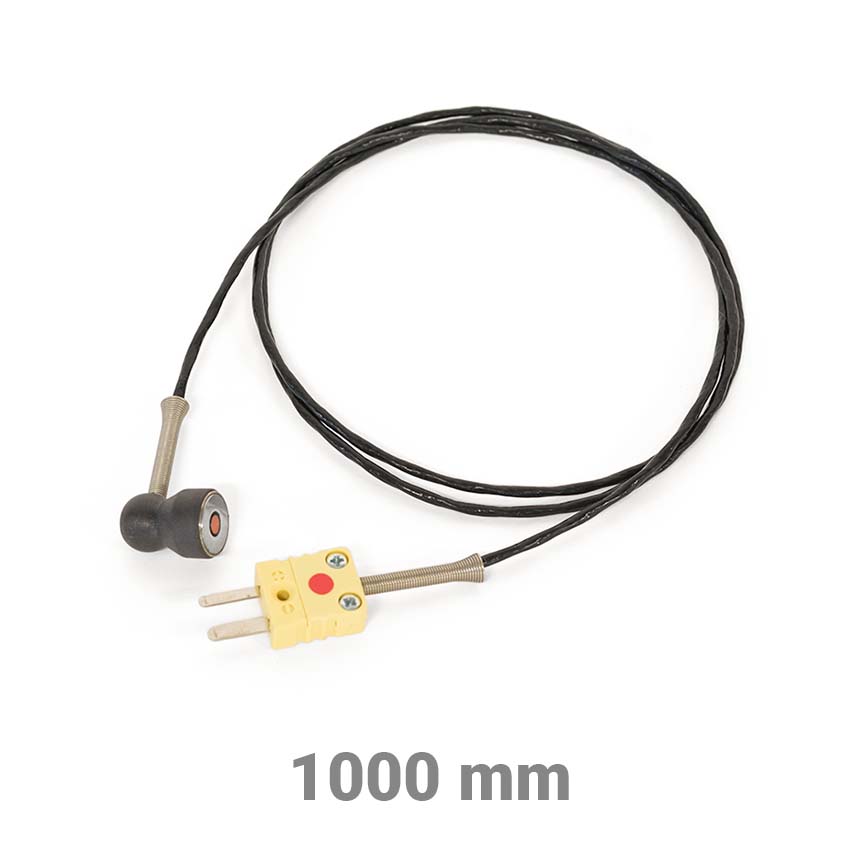

- Temp. Sensor: 1000 mm
- Optional: Trolley
