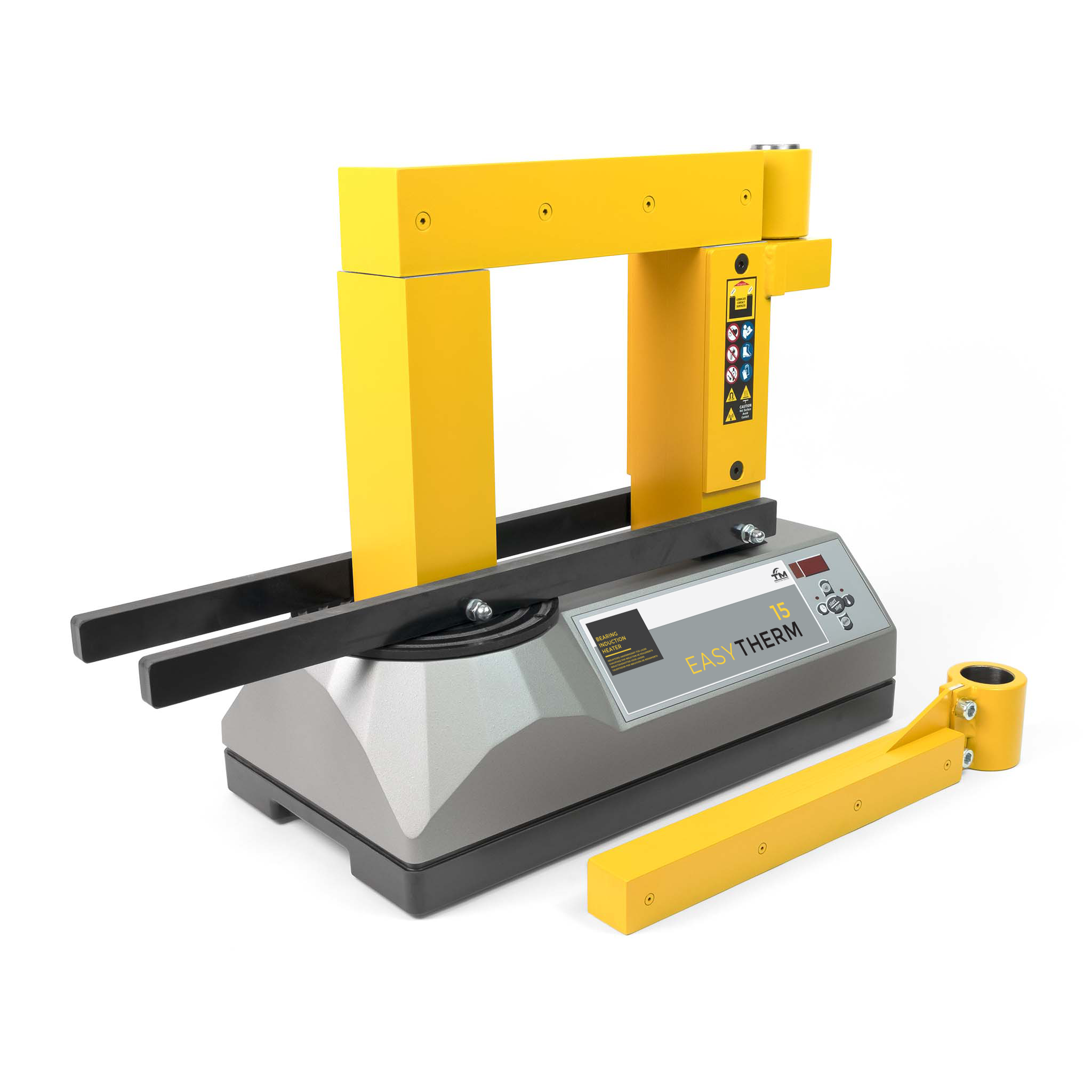

EASYTHERM 15
Log in or register to see pricing
The Easytherm 15 is the heavy workshop model in TM Induction Heating’s Easytherm series, built for controlled heating during installation of larger bearings and other parts. It is designed for higher loads and larger diameters, supporting workpieces up to 150 kg with a maximum outer diameter of 490 mm.
Key functions include Temperature Mode with sensor control from 0°C to 240°C, plus Time Mode for repeatable cycles in production environments. Standard Auto Demagnetizing and Temperature Hold support a clean finish and stable temperature control when you need extra time for mounting.
Designed for demanding maintenance and production use, the Easytherm 15 stays robust, powerful, and easy to operate. It remains maintenance-free while staying suitable for sealed and shielded bearings, pre-greased bearings, and bearings with polyamide cages, so it fits a broad range of bearing applications at higher capacity.
The following yokes are included with Easytherm 15:
40 x 38, 70 x 70. Additional yoke sizes are listed in our Datasheet. A magnetic temperature sensor with a length of 1000 mm is included as well.
Specifications
| Weight | 119,2 kg |
|---|---|
| Dimensions | 45 × 65 × 70 cm |
DATASHEET EASYTHERM 15
ELECTRICITY
Power rating
8.0 kVA
Voltage
400 – 575 V
Current max.
20.0 A
Frequency
50 – 60 Hz
WORKPIECE MAX. WEIGHT
Bearings and other parts
150.0 kg
WORKPIECE
Min. bore Vertical
ø20.0 mm
Min. bore Horizontal
108.0 mm
Max. outer diameter Vertical
485.0 mm
Max. outer diameter Horizontal
490.0 mm
Max. workpiece width
210.0 mm
Max. OD with extension blocks
885.0 mm
Max. temperature
240.0 °C
WEIGHT
Without yokes
62 kg
DIMENSIONS
L × W × H
505 × 260 × 400 mm
CONTROLS
Temperature (1 sensor)
0-240°C
Time
99 min. : 59 sec
OTHERS
Sound signal
Buzzer
Temperature hold
Yes
Demagnetizing
< 2A/cm
Magnetic probe
One piece
WARRANTY
Warranty period
Max. 36 Months (24+12)
