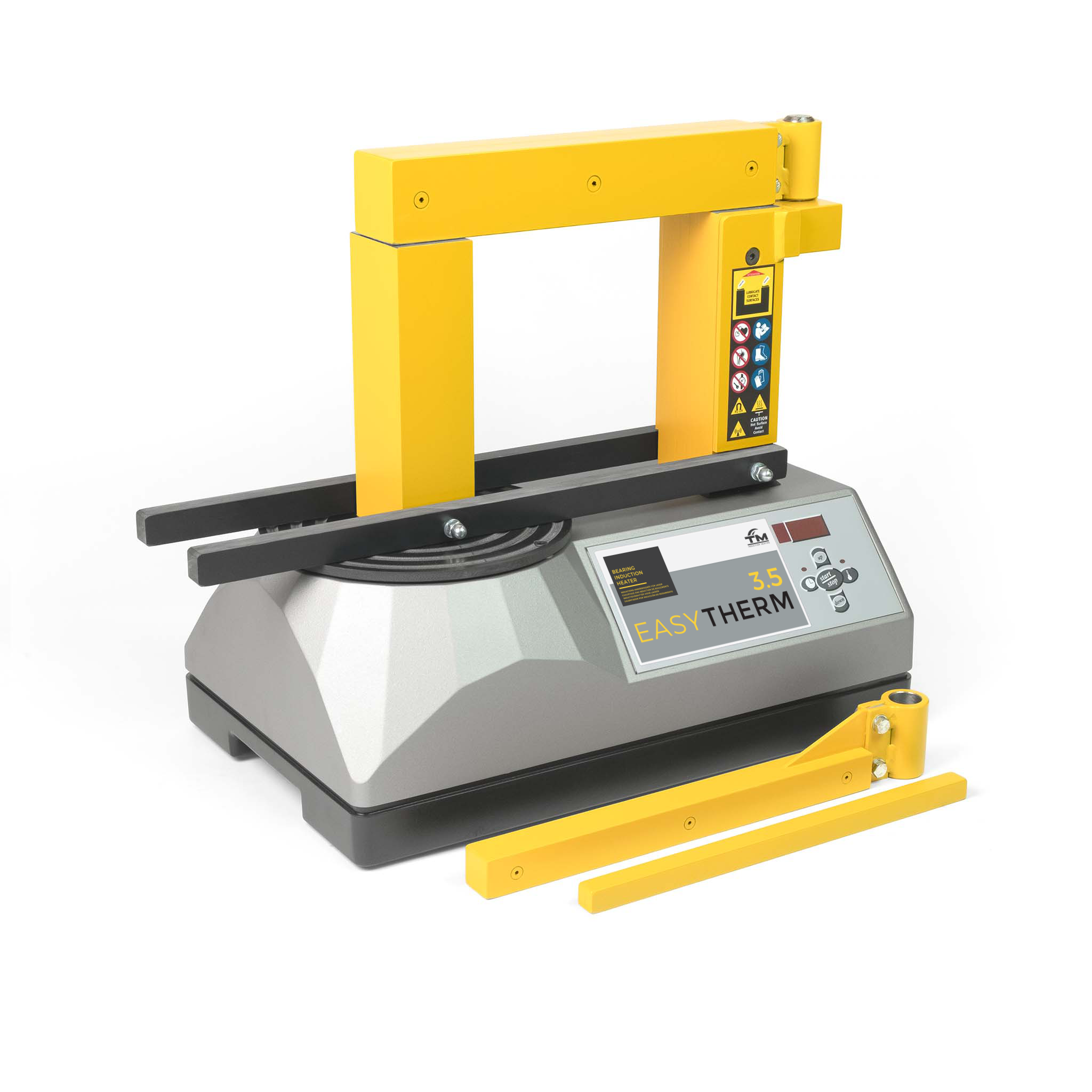

Easytherm 3.5 is the ideal induction heater for intensive use in service/repair and production environments. The pivoting yokes make the process of heating bearings safe and efficient. Intended to be used stationary, with a very wide application range of small to medium-sized bearings (min. ID ø 10mm – max. OD ø370mm). In addition to Temperature Mode, heating in Time Mode is available on our larger Easytherm induction heaters (ET3.5, ET15, ET30).

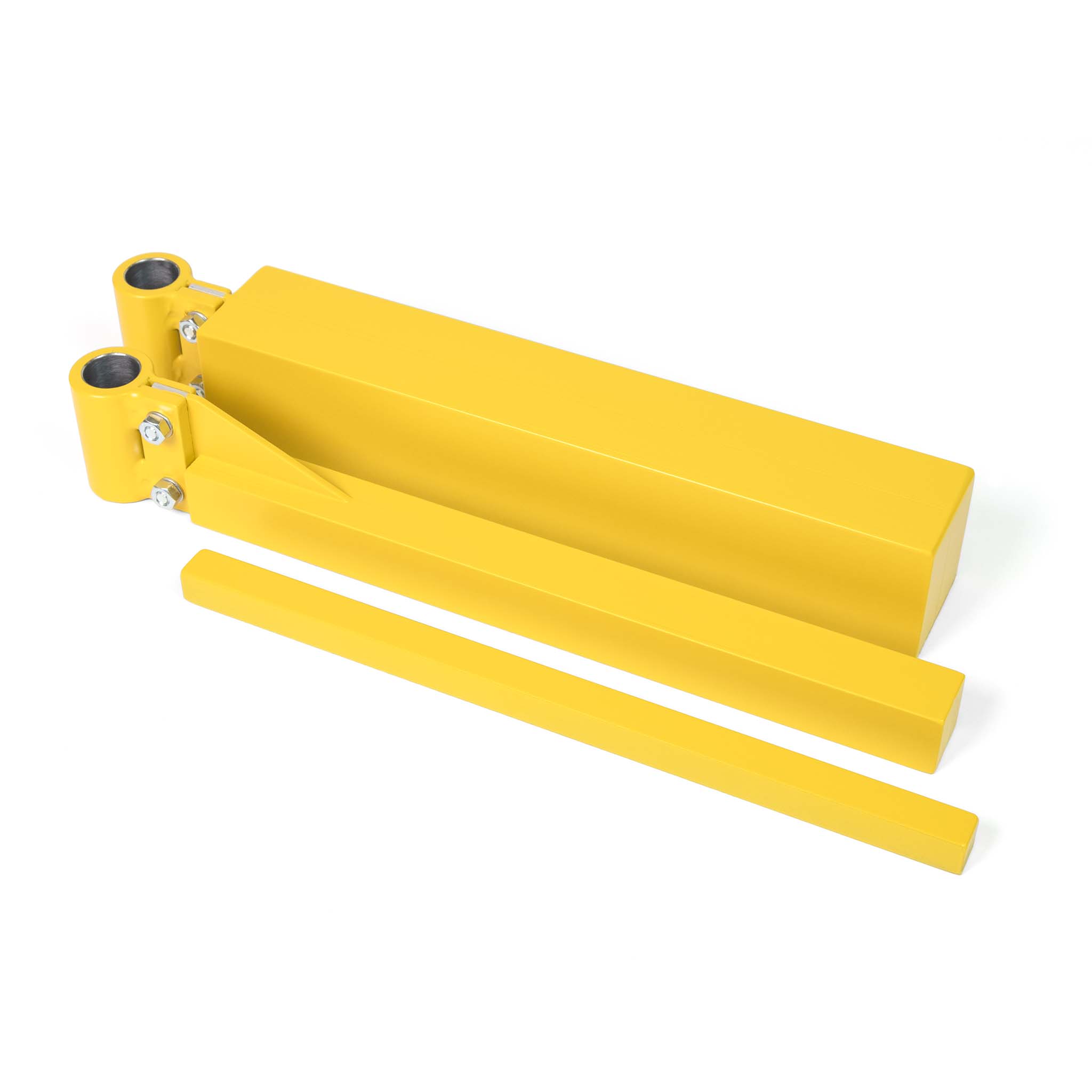

The following yokes are included with Easytherm 3.5:
14 x 14, 25 x 24, 50 x 48. Additional yoke sizes are listed in our Datasheet. A magnetic temperature sensor with a length of 1000 mm is included as well.
|Voltage||115 / 230 V|
|Frequency||50 / 60 Hz|
|Max. current||16 A|
|Weight excl. yoke(s)||29 kg|
|Footprint||415 x 260 mm|
|Max. Temperature||240 °C / 464 °F|
- Yokes: 14 x 14, 25 x 24, 50 x 48
- Temp. Sensor: 1000 mm
