EASYTHERM 1
Log in or register to see pricing

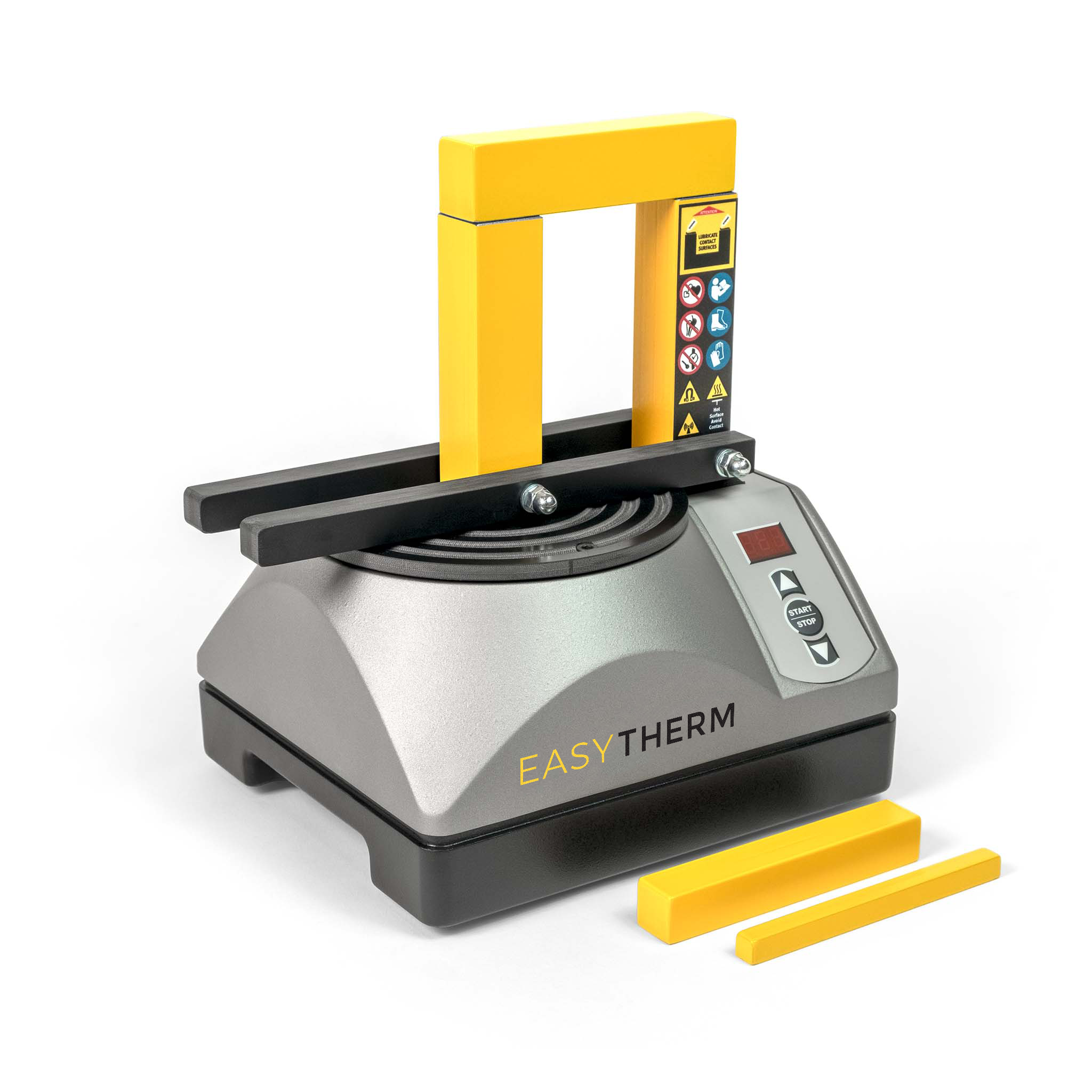

The Easytherm 1 is the compact entry-level model in TM Induction Heating’s Easytherm series, built for fast and controlled heating during bearing installation. It is designed for smaller bearings and other parts, and supports reliable heating for workpieces up to 10 kg with a maximum outer diameter of 170 mm.
Key functions focus on simple, repeatable operation. Temperature Mode uses a sensor on the workpiece and runs from 0°C to 240°C, giving controlled heating before mounting. Standard functionality like Auto Demagnetizing and Temperature Hold keeps the process clean and straightforward.
Designed for daily workshop and service use, the Easytherm 1 stays easy to operate and maintenance-free. It is also suitable for sealed and shielded bearings, pre-greased bearings, and bearings with polyamide cages, so you can use it across common bearing types without changing your workflow.

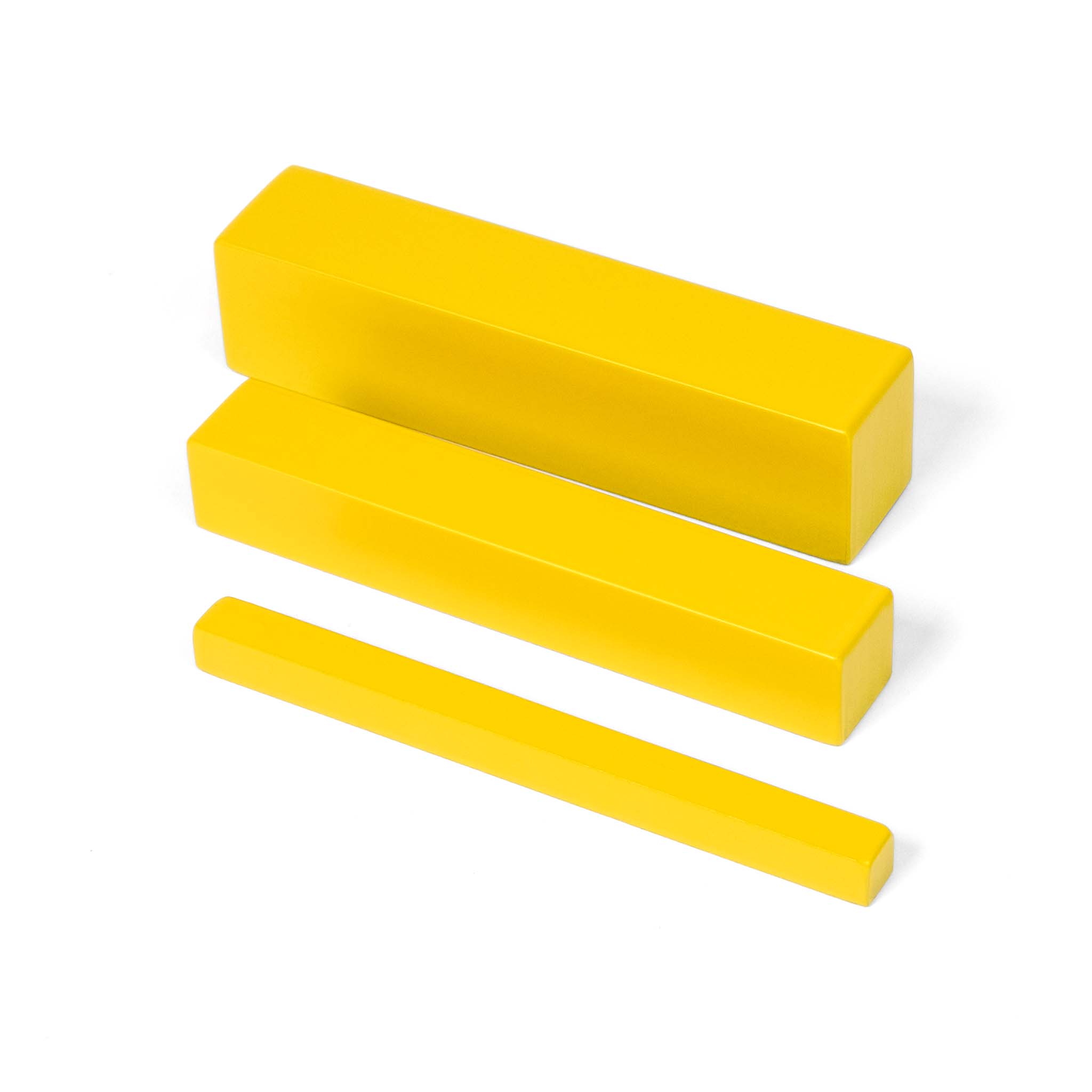

The following yokes are included with Easytherm 1:

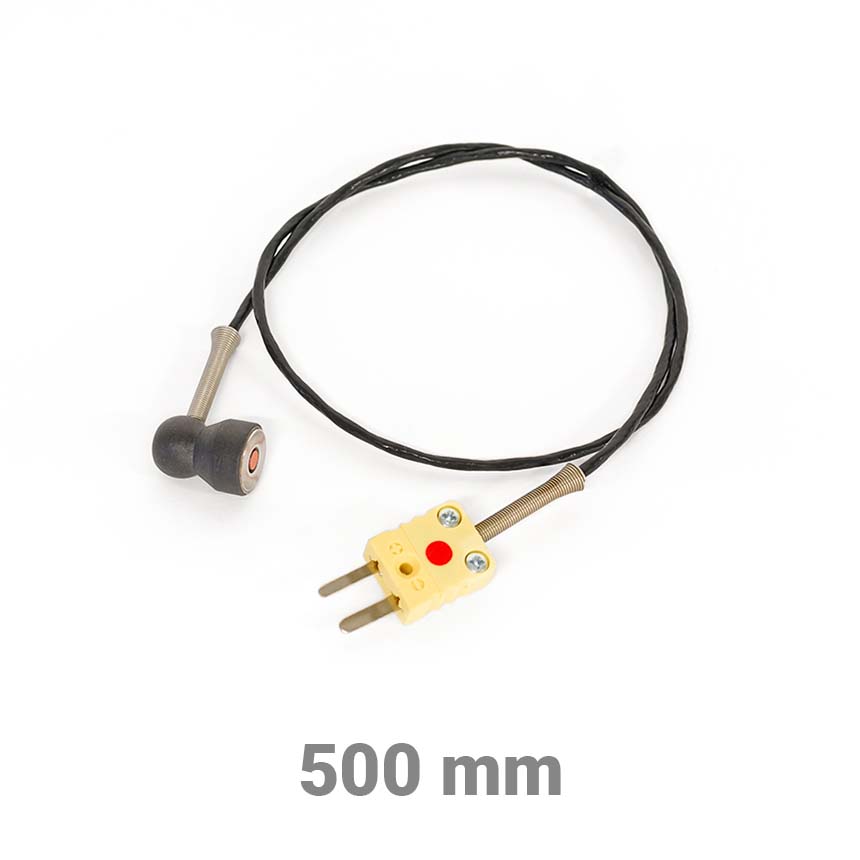

10 x 10, 20 x 20, 30 x 26. Additional yoke sizes are listed in our Datasheet. A magnetic temperature sensor with a length of 500 mm is included as well.
Specifications
| Weight | 12,35 kg |
|---|---|
| Dimensions | 31 × 31 × 38 cm |
DATASHEET EASYTHERM 1
ELECTRICITY
Power rating
2.3 kVA
Voltage
115 – 230 V
Current max.
10.0 A
Frequency
50 – 60 Hz
WORKPIECE MAX. WEIGHT
Bearings and other parts
10.0 kg
WORKPIECE
Min. bore Vertical
ø15.0 mm
Min. bore Horizontal
44.0 mm
Max. outer diameter Vertical
230.0 mm
Max. outer diameter Horizontal
160.0 mm
Max. workpiece width
65.0 mm
Max. temperature
240.0 °C
WEIGHT
Without yokes
9 kg
DIMENSIONS
L × W × H
230 × 200 × 250 mm
CONTROLS
Temperature (1 sensor)
0-240°C
OTHERS
Sound signal
Buzzer
Temperature hold
Yes
Demagnetizing
< 2A/cm
Magnetic probe
One piece
WARRANTY
Warranty period
Max. 36 Months (24+12)
