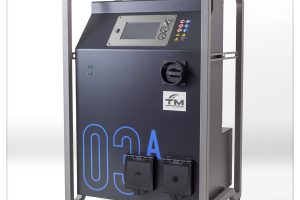

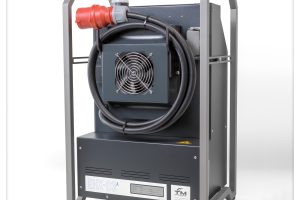

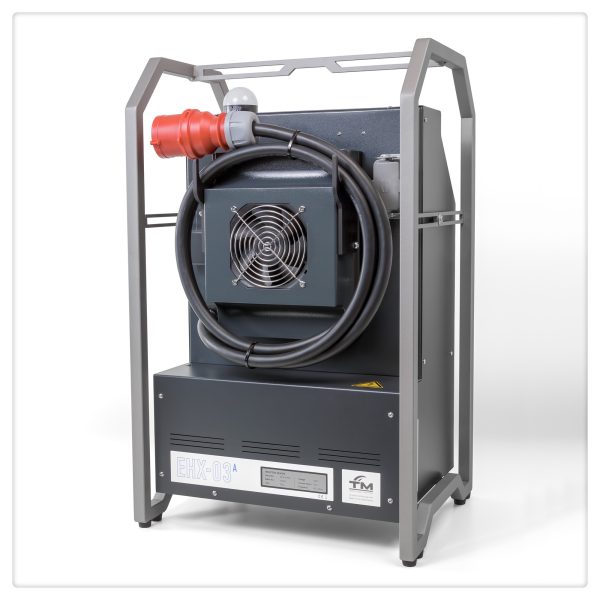

EHX-03A is a powerful and mobile generator, suitable for applications that require mounting and/or dismounting. Designed for use with aircooled inductors. Compared to the previous generation of mid frequency generators, EHX-03A is a significant step forward. We have managed to create a more powerful output, with a form factor 3 times smaller than its predecessor.
Using a Flexible Inductor, it is possible to heat components with different geometries, such as gears, couplings, and bearings. A Fixed Inductor will allow to perform heating cycles on specific parts, in exactly the same way, over and over again.
See the links below for examples of applications we’ve developed previously.
SPECIFICATIONS
| Input (Supplied Power) | |
| Voltage Current (max.) Frequency | 400 - 480 V 32 / 40 A 50 / 60 Hz |
| Output (Generated Power) | |
| Voltage (max.) Current (max.) Output Power (max.) | 540 - 660 V 57 A 22 - 30 kW |
| Other | |
| Dimensions (L x B x H) Weight | 440 x 350 x 712 mm 39 kg |
- Power output of 22 / 30 kW
- Lightweight & Mobile
- For aircooled applications
- Flexible & Fixed Inductors
